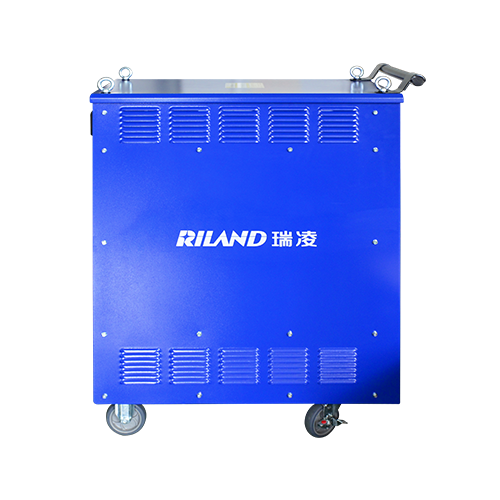

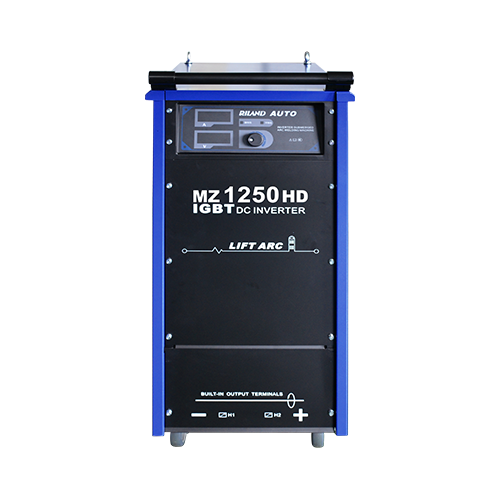

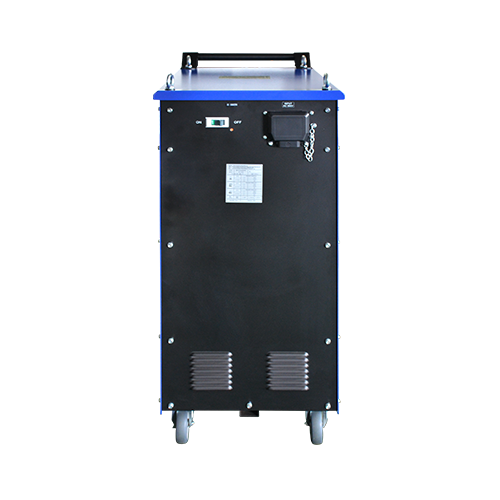

Fully digital automatic submerged arc welding machine
It is widely used in shipbuilding, boiler manufacturing, pipe processing, steel structure, bridge, engineering machinery and other fields, and is suitable for flat welding and ship-shaped welding of plates of different thicknesses.
We guarantee all of our products against defective workmanship and faulty materials for 6 months from the date of purchase.
| Product Model | MZ 1250HD | Input voltage (V) | Three-phase 380±15% |
| Frequency (Hz) | 50/60 | Rated input capacity (KVA) | 63.1 |
| Open circuit voltage (V) | 76.2-92.3 | Current adjustment range (A) | Submerged arc welding: 250-1250 / Hand welding & gouging: 100-1250 |
| Duty cycle (°C) | 100% | efficiency | 91% |
| Power factor | 0.93 | Insulation class | F |
| Protection Level | IP23 | Machine net weight (kg) | 123.3 |
| Machine dimensions (mm) | 825*451*1040 |
