Dual-voltage built-in air pump cutting machine
Application areas: Suitable for steel structure installation, metal recycling, outdoor construction, machining, building construction and other fields.
We guarantee all of our products against defective workmanship and faulty materials for 6 months from the date of purchase.

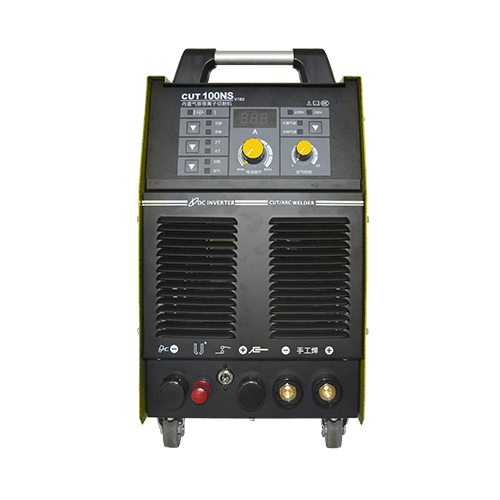

| Product Model | CUT 100NS | Input voltage (V) | Single-phase 220±15% / Single-phase 380±15% |
| Frequency (Hz) | 50/60 | Rated input capacity (KVA) | 220V: 9.9 / 380V: 15.2 |
| Open circuit voltage (V) | 310 / 260 | Current adjustment range (A) | Cutting: 220V: 25-55℃; 380V: 25-80℃ / Manual: 220V: 100-220℃; 380V: 100-280℃ |
| Duty cycle (°C) | 40% | efficiency | 220V: 87% / 380V: 90% |
| Power factor | 0220V: 0.75 / 380V: 0.65 | Insulation class | F |
| Recommended cutting thickness (mm) | 220V: 1-15 / 380V: 1-20 | Machine net weight (kg) | 41 |
| Machine dimensions (mm) | 550*280*545 |
