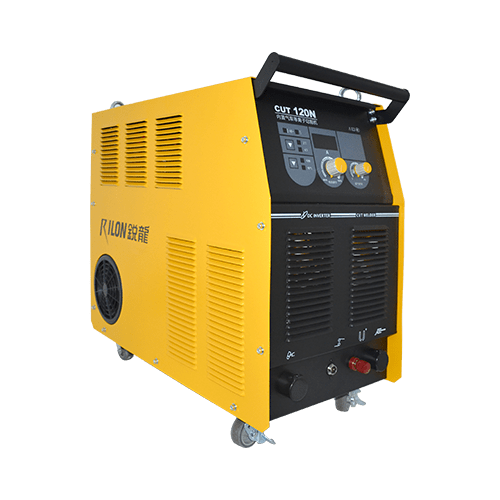

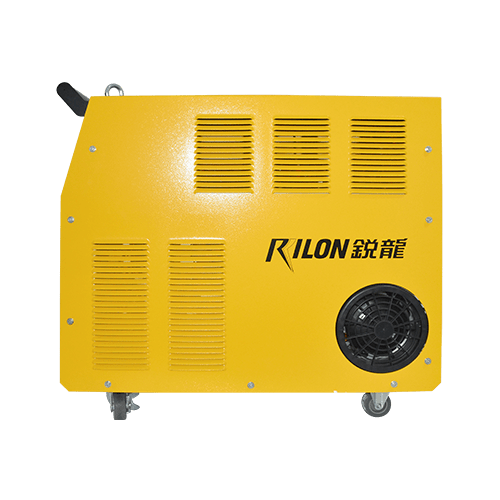

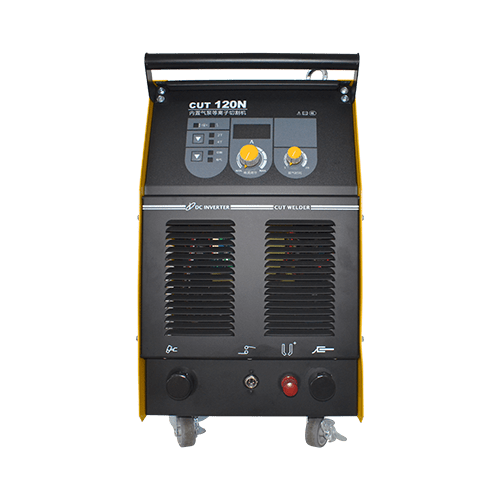

Industrial built-in air pump cutting machine
Application areas: Suitable for steel structure installation, metal recycling, outdoor construction, machining, building construction and other fields.
We guarantee all of our products against defective workmanship and faulty materials for 6 months from the date of purchase.
| Product Model | CUT 120NⅡ | Input voltage (V) | Three-phase 380±15% |
| Frequency (Hz) | 50/60 | Rated input capacity (KVA) | 15.1 |
| Open circuit voltage (V) | 270 | Current adjustment range (A) | 10-Cutting: 25-100 / Hand welding: 100-280 |
| Duty cycle (°C) | 40% | efficiency | 85% |
| Power factor | 0.9 | Insulation class | F |
| Protection Level | IP21 | Limiting cutting thickness (mm) | 45 |
| Recommended cutting thickness (mm) | 1-30 | Machine net weight (kg) | 55.5 |
| Machine dimensions (mm) | 670*320*640 |
