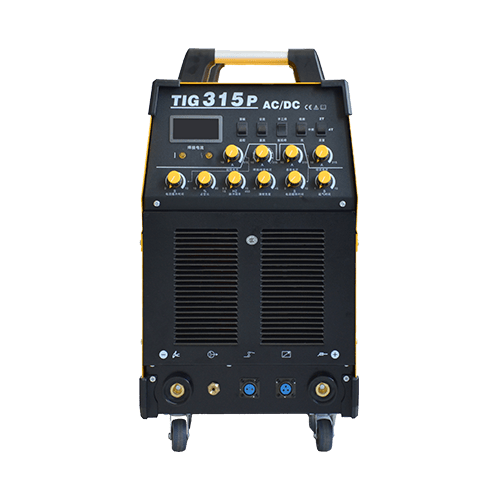

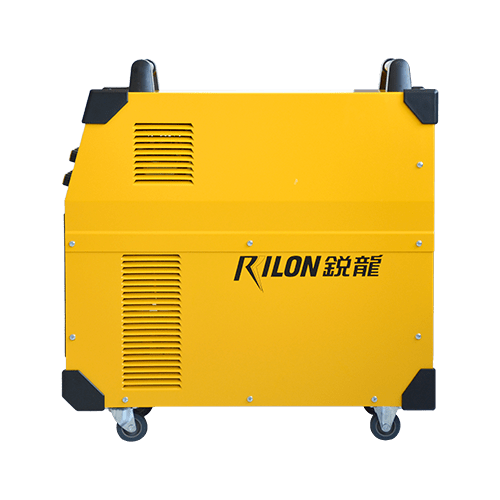

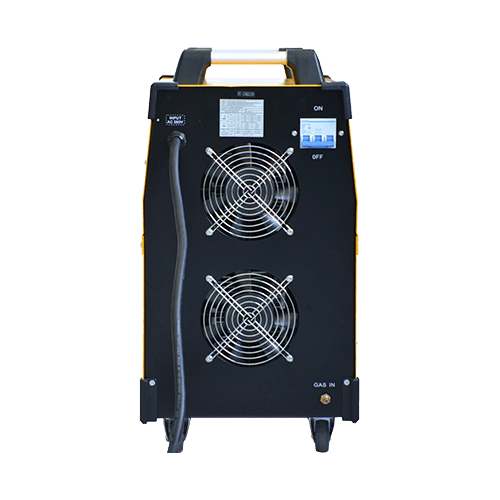

Full-function aluminum welding TIG welding machine
Application areas: Suitable for high-grade non-ferrous metal welding, aluminum alloy product processing, fitness equipment manufacturing, and pipeline installation.
We guarantee all of our products against defective workmanship and faulty materials for 6 months from the date of purchase.
| Product Model | TIG 315PAC/DC | Input voltage (V) | Three-phase 380±15% |
| Frequency (Hz) | 50/60 | Rated input capacity (KVA) | 11.3 |
| Open circuit voltage (V) | 62 | Current adjustment range (A) | 12-300 |
| Duty cycle (°C) | 20% | efficiency | 85% |
| Power factor | 0.93 | Insulation class | H |
| Protection Level | IP21 | Pulse Frequency | 0.5-450 |
| Descent time (s) | 0-10 | Cleanup width (%) | ±5 (20-80%) |
| Duty cycle (%) | 10-90% | Gas delay (S) | 0-10 |
| Machine net weight (kg) | 35.5 | Machine dimensions (mm) | 609*332*622 |
