Power Tools | stick welder

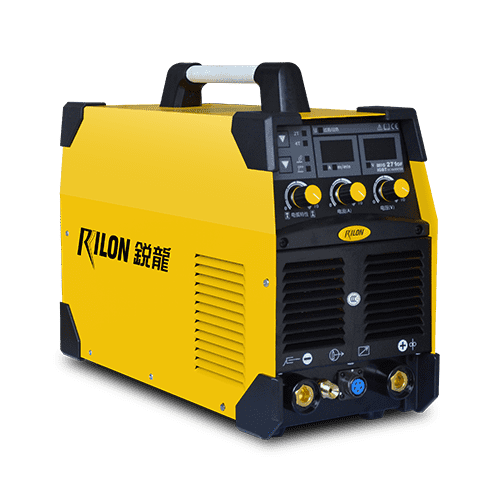

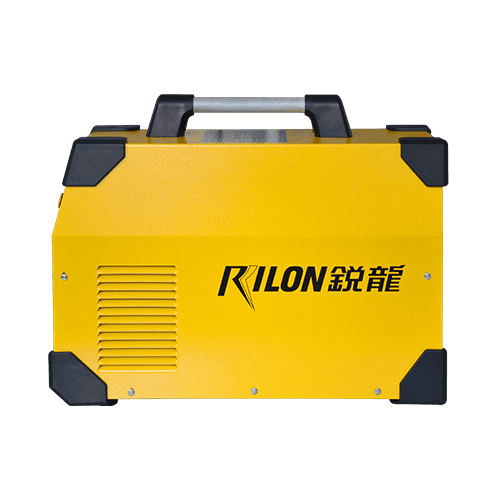

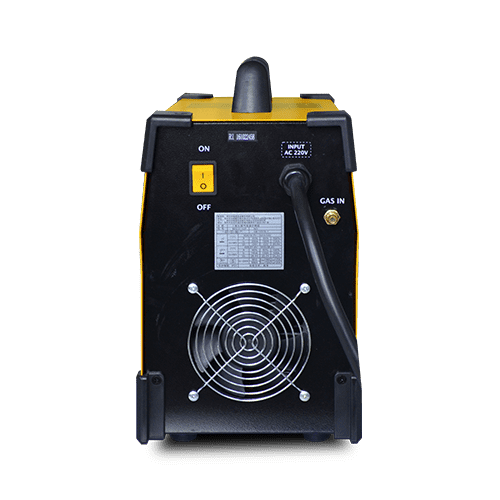

Lightning series split-type machine
Application areas: Widely used in small steel structures, door and window railing installation, sheet metal processing, building construction, and machining.
We guarantee all of our products against defective workmanship and faulty materials for 6 months from the date of purchase.
| Product Model | MIG 271GF | Input voltage (V) | Single-phase 220±15% |
| Frequency (Hz) | 50/60 | Rated input capacity (KVA) | 7.2 |
| Open circuit voltage (V) | 56 | Current adjustment range (A) | 50-200 |
| Duty cycle (°C) | 40% | Rated input voltage (V) | 16.5-24 |
| Types of wire feeders | Split | efficiency | 80% |
| Power factor | ≥0.73 | Protection level | IP21 |
| Insulation class | F | Machine net weight (kg) | 13.5 |
| Machine dimensions (mm) | 466*212*371 |
